Solar Project Types

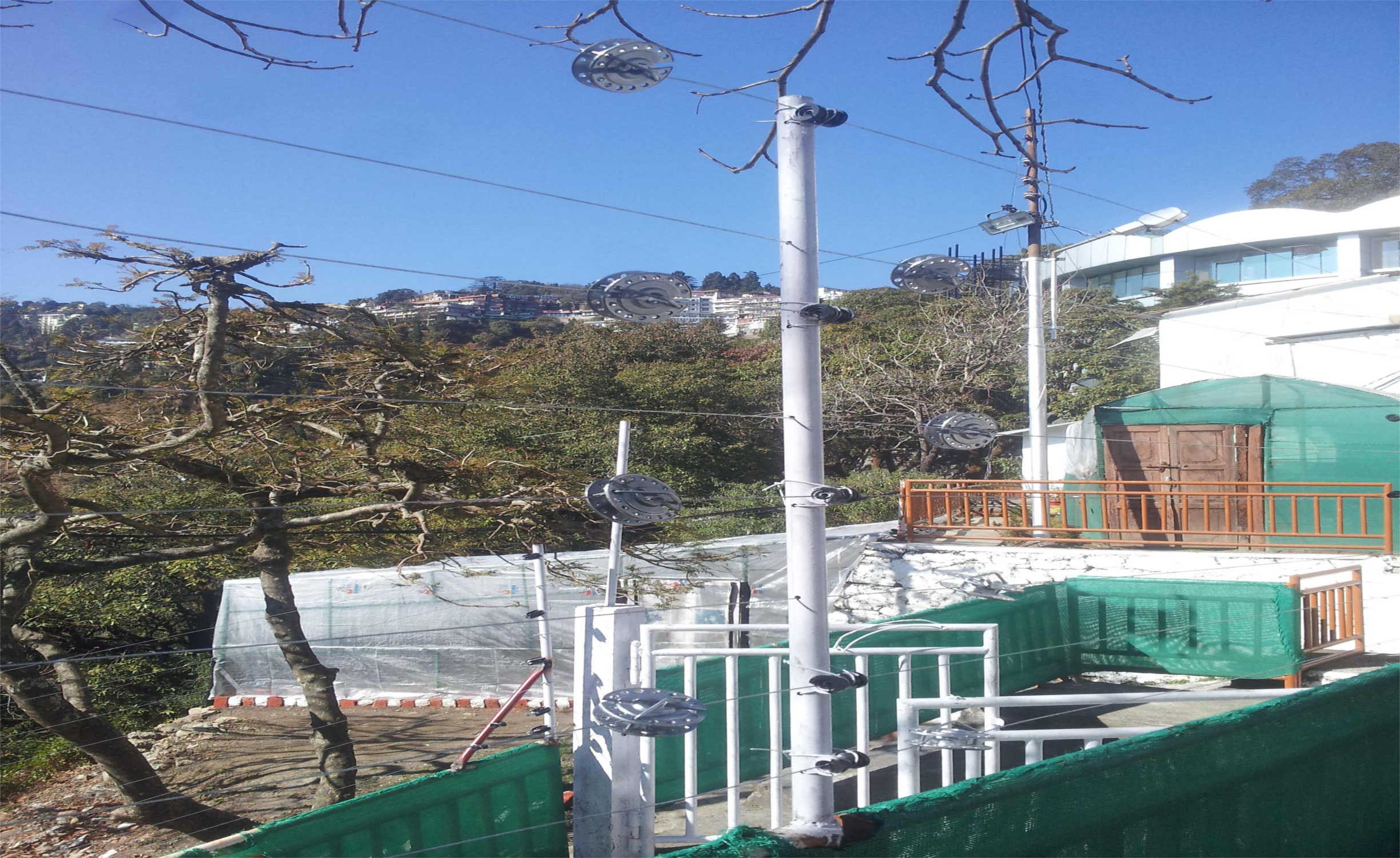

Solar Fence/Fencing
The Solar Perimeter Security Electric Fence system is a modern day alternative to conventional methods of fencing to protect your crops & property. Electric Fence is an effective way to reducing losses caused by animals. These are active fences and punish the unwelcome intruder the moment they touches the fence or try to tamper the fence. The conventional types of fences are only passive fences and cannot resist the intruder if they try to forcibly intrude into the protected area. Solar security fence gives a sharp, short but a safe shock and creates psychological fear. Against any tampering the alarm incorporated in the system gets activated and alerts the inmates of the protected area, which facilitates them to counter the intruders. Solar fence use solar Energy with backup facility to run uninterruptedly during the nights as well as rainy/cloudy days. The whole system can be derived into two segments, one is the Basic system PV module with Energizer which makes it one unit and the other one is the Fence.

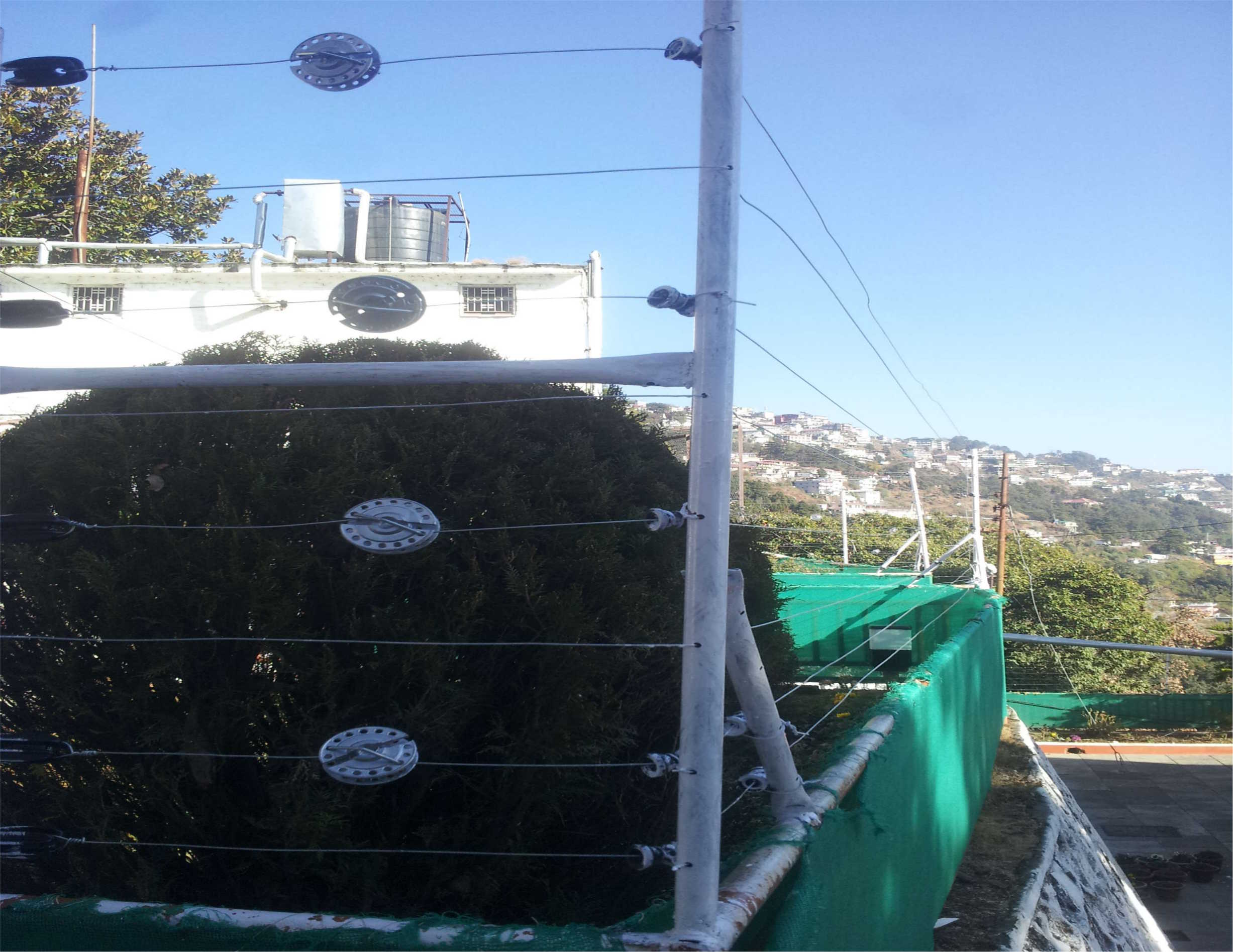

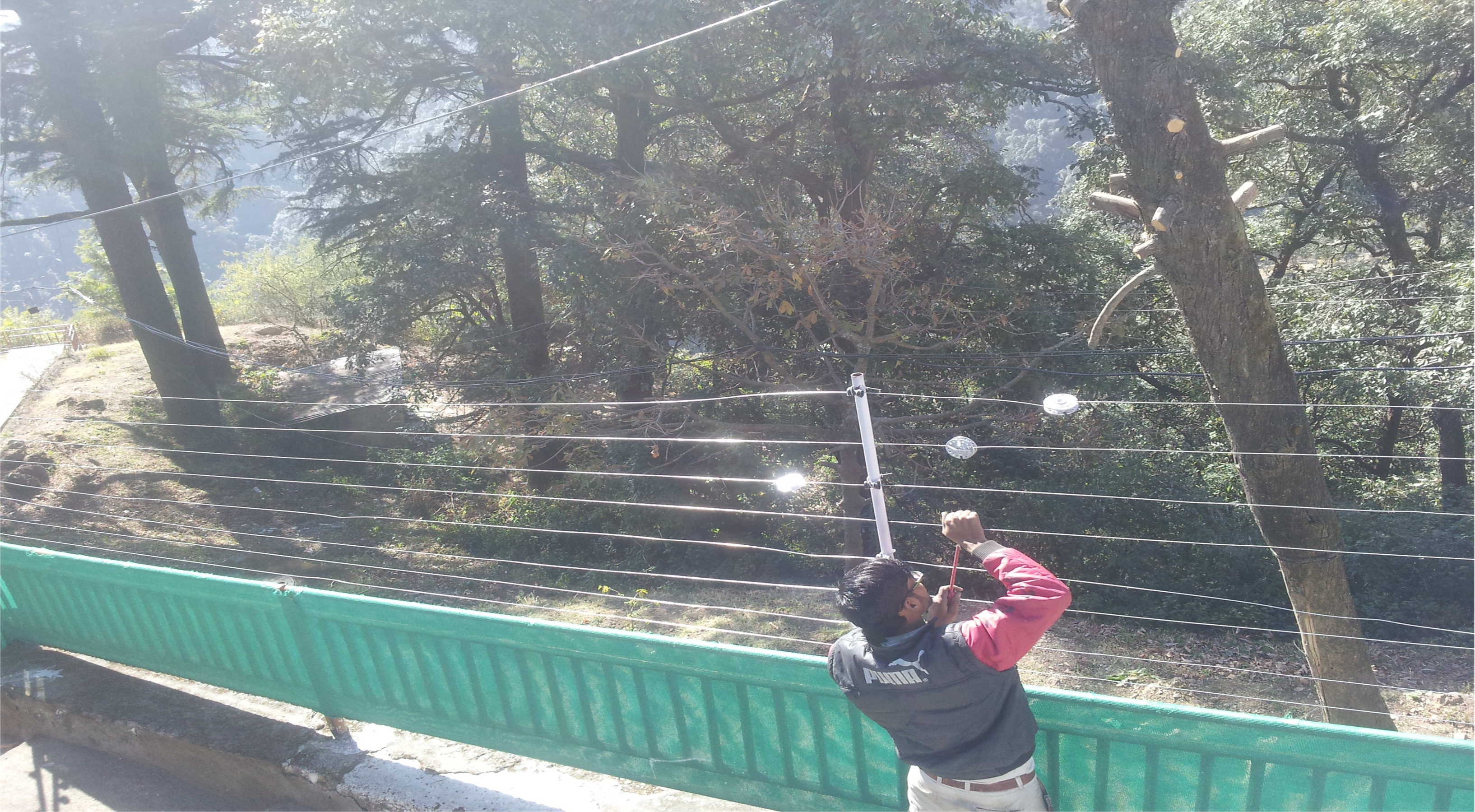

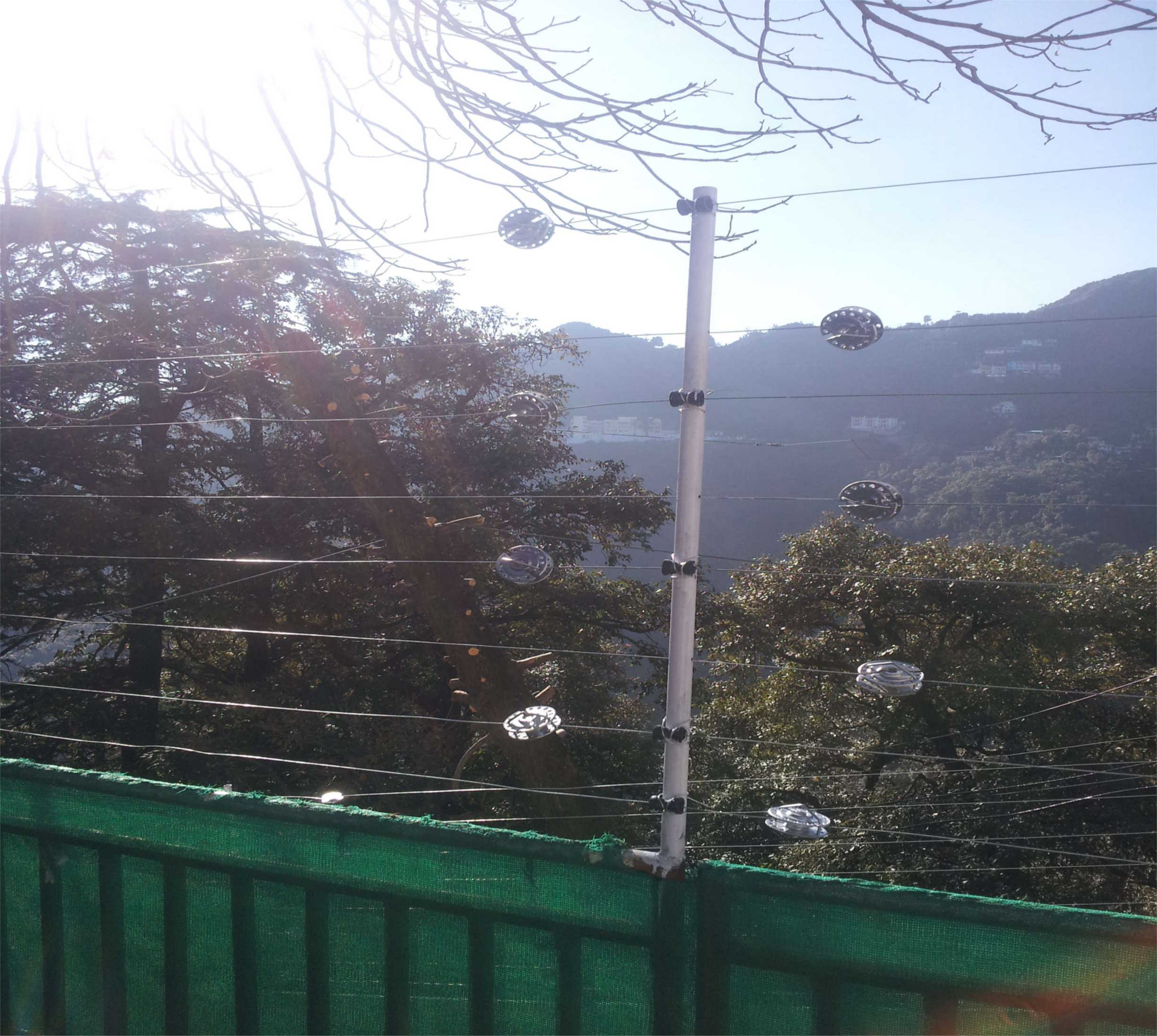

Unit takes 12V supply as input and energizes the same into high volt pulses in the range of about 7000 Volts. These pulses then travel through the fencing wires at regular interval of 1.2 second and the duration of each pulse will be 0.03 seconds. The fence layout in a manner of multi strands at 4 inches gaps, run through the insulators, which are pre-fixed to MS galvanized posts. The height of the fence above the compound wall is 4 feet. The posts are arranged at 3 meter gaps with perfect supporting to the corner poles. Proper earthing in the mode of Super Earth Kits which is a composite Mixture of different minerals helps the fence to have a perfect earthing system as solar fencing requires good earthing for effective working.
There is a provision for restricting the intrusion through the gate as well as over the gate (Optional). The spring loaded barricades arranged to the gate will electrify the gate and activates the alarm when somebody tries to open the gate forcibly. Pulses travels through the springs arranged on the gate and give the shock to the trespassers / intruder.
How does the solar electric fence system works?
When an animal or human being comes into contact with the electric Fence, they receive a sharp, short, painful but safe electric shock. The shock does not cause any physical damage. The electric fence acts as a strong psychological barrier as any intruder avoid coming into contact with the electric Fence once they experience the shock. After a period of conditioning, the mere presence of the fence acts as an effective barrier even if it is not powered ‘ON’. Electric fence can be made to detect a fault on the fence like shorting or cutting of the wire due to tampering on the fence with the Alarm system.
Features of the solar electric fence system
- Existing posts can be made use of provided the corner / end poles are strong.
- The shock does not physically harm animals or human beings.
- The Solar Electric Fence System conforms to National and international Standards.
- The Solar Energizers are tested and verified

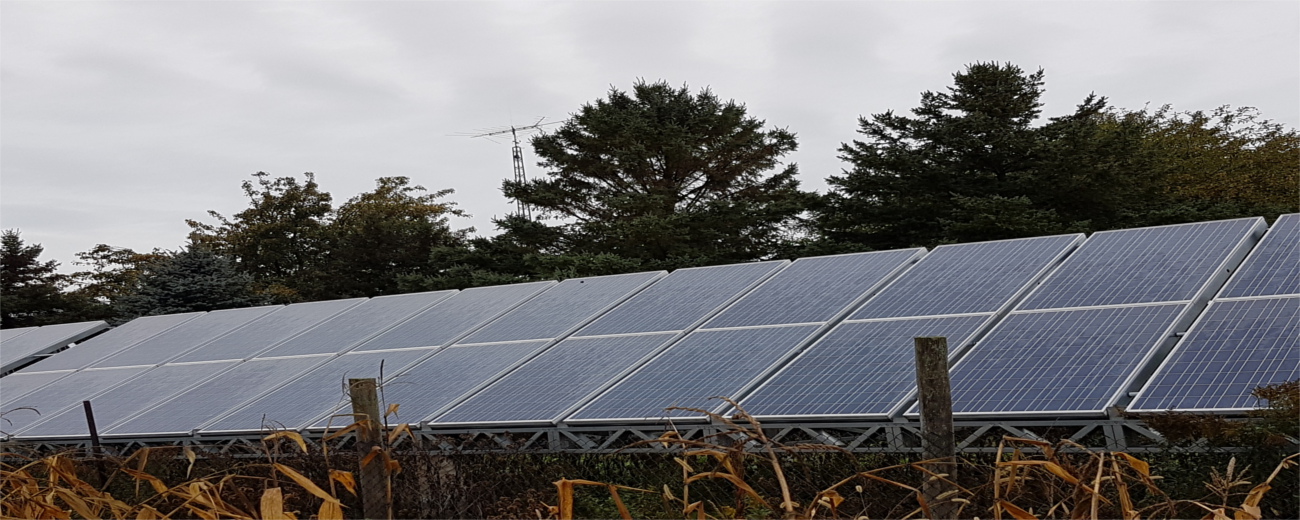

Solar Power Plant
This Hybrid solar system is specially designed to satisfy with the electricity needs of houses and offices, as to produce and power some basic house loads, like lights, fans etc, which brings you with a perfect turnkey solution by exploiting energy in a maximum,, and meanwhile, save your electricity bill. India is endowed with vast solar energy potential. About 5,000 trillion kWh per year energy is incident over India’s land area with most parts receiving 4-7 kWh per sq. m per day. Hence both technology routes for conversion of solar radiation into heat and electricity, namely, solar thermal and solar photovoltaic’s, can effectively be harnessed providing huge scalability for solar in India. Solar also provides the ability to generate power on a distributed basis and enables rapid capacity addition with short lead times. Off-grid decentralized and low-temperature applications will be advantageous from a rural electrification perspective and meeting other energy needs for power and heating and cooling in both rural and urban areas. From an energy security perspective, solar is the most secure of all sources, since it is abundantly available. Theoretically, a small fraction of the total incident solar energy (if captured effectively) can meet the entire country’s power requirements. It is also clear that given the large proportion of poor and energy un-served population in the country, every effort needs to be made to exploit the relatively abundant sources of energy available to the country.
Hybrid Solar Power System
Grid-tied systems can be upgraded to include a battery backup: a bank of deep-cycle batteries. The backup battery is charged by both the grid and the solar panels. In the event of an outage, the backup battery will need to be switched on either manually or with an automatic system to provide backup power to the building.
Requirement Assessment
Installation of Photovoltaic Module Hybrid Solar Power Plant, so that AC load run on solar energy on the day time when sunlight is available and on battery backup when needed.
Solution Design/Approach
Solar Photovoltaic (PV) is a method of converting solar irradiation in to direct current electricity using semiconductor that exhibit the Photovoltaic Effect. Photovoltaic power generation employs solar panels composed of a number of solar cells containing a photovoltaic material. Materials presently used for photovoltaic include monocrystalline silicon, poly crystalline silicon, amorphous silicon; Cadmium Telluride (CdTe) and copper indium gallium selenide/sulfide (CIGS) Due to the growing demand for renewable energy sources, the manufacturing of solar cells and photovoltaic system has advanced considerably in recent years.
Solar photovoltaic is growing rapidly, albeit from a small base, to a total global capacity of 69 GW at the end of 2011. The total power output of the world’s PV capacity run over a calendar year is equal to some 80 billion kWh of electricity. This is sufficient to cover the annual power supply needs of over 20 million households in the world. Driven by advances in technology and increases in manufacturing scale and sophistication, the cost of photovoltaic has declined steadily since the first solar cells were manufactured and the levelised cost of electricity (LCOE) from PV is competitive with conventional electricity sources in an expanding list of geographic regions. Net Metering and financial incentives, such as preferential feed-in tariffs for solar-generated electricity, have supported solar PV installations in many countries. With current technology, photovoltaic recoup the energy needed to manufacture them in 1 to 4 years.
Solar PV installation/ Solar Street Light
Solar-powered SOLAR STREET LIGHT consists of a solar panel or photo-voltaic cell that collects the sun's energy during the day and stores it in a rechargeable cell battery. The intelligent controller senses when there is no longer any energy from the sun and automatically turns the LED light on using a portion of the stored energy in the rechargeable battery.
Solution Design
Our solar street lights are ultra – low maintenance and with long product life. 25 years performance warranty on solar panels, LED luminary fixtures are rated for long life with maintenance free operation, sealed lead acid battery for long life. Green light source, 40 – 70% less power consumption than traditional light sources. Our solar street lights emit no light pollution, provides bright white light which improves color recognition and improves night visibility from 400 – 1000% over traditional light sources. Flexible configuration, we configure solar lights to suite your requirements with perfect specifications of PV modules, battery banks & LED luminaries.
Applications(some)
- Highways/Roadways
- Colleges/Universities/factories Premises
- Residential Streets
- Pedestrian Walkways
- Large lawns/Garden/Fields
